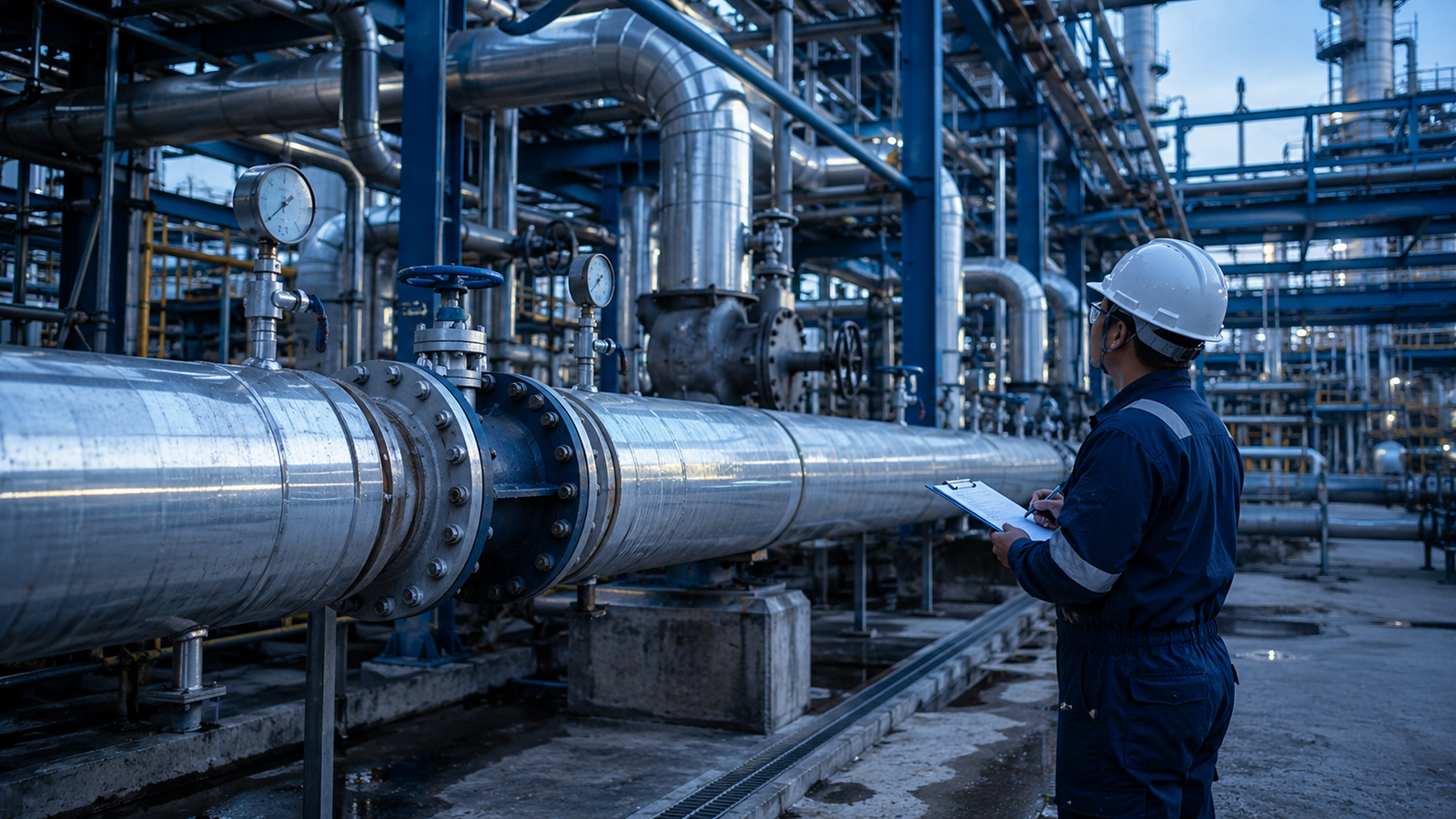

Steam Piping Systems

Fabco Engineers designs, fabricates and installs steam distribution systems for factories across Karnataka. Headers, mains, branch lines, traps, condensate recovery and the insulation that goes over all of it.

Among steam piping contractors Bangalore manufacturers work with, we are one of the few who engineer the system rather than simply run pipe between two points. That distinction shows up in your fuel bill every month.

Why piping design matters more than most plants realise

A boiler can be perfectly specified and still deliver poor results if the distribution system is wrong. Undersized pipe starves equipment at peak demand and causes erosion at high velocity. Oversized pipe costs more in material and insulation and increases standing heat loss. Wrong gradients let condensate pool where it should drain. Missing or failed traps waterlog the line and cause water hammer that eventually destroys fittings.

Water hammer in particular is worth taking seriously. That banging sound is a slug of condensate travelling at steam velocity. It breaks valves, splits fittings and has killed people. It is almost always a design or trap problem, and it is almost always fixable.

We size lines against actual demand with proper allowance for pressure drop, velocity limits and future expansion. It is not difficult engineering, but it has to be done rather than estimated.

What we install

Steam headers and mains. Fabricated to drawing with correct branch takeoffs from the top of the line, drain points at low spots and expansion provision on long runs.

Branch and equipment connections. Tie ins to autoclaves, jacketed vessels, dryers, calenders and heat exchangers, executed with the process running wherever a shutdown can be avoided.

Steam traps and trap stations. Selected by application rather than fitted uniformly. Thermodynamic, float and thermostatic and inverted bucket traps each suit different duties, and the wrong choice fails quietly.

Condensate recovery. Return lines, flash vessels and pumped return to the feed tank. Condensate is hot treated water you have already paid for twice, and sending it to drain is one of the most common losses we find.

Pressure reducing stations. Where different processes need different pressures from one supply.

Expansion joints and supports. Steam lines move. Anchors, guides and loops go where the thermal calculation says they should.

IBR compliance in pipework

Steam piping above the regulated threshold falls under the Indian Boiler Regulations along with the boiler. That means approved drawings, certified welders, traceable material with test certificates and inspection before commissioning.

As steam piping contractors Bangalore plants use for registered installations, we hold the qualifications and prepare the submissions. Where clients have inherited undocumented pipework, we can often survey, test and regularise it rather than replace it.

Fabrication and site work

We fabricate in our own facility where conditions allow better control, then erect on site. Spools are prepared to drawing, welds are inspected and lines are hydraulically tested before insulation goes on. Testing after cladding is a false economy nobody enjoys twice.

Site work in a running factory needs planning more than manpower. We sequence tie ins around your production calendar, work shutdowns when they are genuinely needed and keep hot work permits, isolation and access under control. Our supervisors are on site rather than managing by phone.

Insulation and the cost of bare pipe

An uninsulated flange or valve radiates a surprising amount of heat. Across a plant with hundreds of them, the annual fuel cost is significant and entirely avoidable. We clad lines, valves and fittings in appropriate thickness with aluminium or GI sheeting, and we insulate valves with removable jackets so they can still be serviced.

Most plants we survey have insulation on the straight runs and nothing on the fittings, which is where a large share of the loss occurs.

Commissioning and what a proper handover includes

Experienced steam piping contractors Bangalore plants trust treat commissioning as engineering rather than a formality. Bringing a new steam line into service is a controlled process, not a matter of opening a valve. Lines are blown through to clear debris, warmed slowly so expansion happens gradually, and drained continuously during warm up. Rushing this stage is how new pipework acquires damage in its first hour.

Once at pressure we walk the system with your team, check every trap discharges correctly, confirm anchors and guides are behaving as designed, and record baseline readings you can compare against later. You receive as built drawings, weld and test records, trap schedules identifying every unit by location and type, and an insulation specification.

That trap schedule matters more than it sounds. Most plants cannot say how many traps they have or where they are, which makes systematic maintenance impossible and leaves failures undetected for years.

Surveys of existing systems

You do not need a new installation to benefit from a review, and this is the service steam piping contractors Bangalore clients most often overlook. We survey working plant and report on trap failure rates, which are typically far higher than operators expect, insulation gaps and their annual fuel cost, condensate recovery opportunities, line sizing against current demand, and safety issues such as unsupported runs or missing drains.

The report quantifies what each item is worth annually so you can prioritise on payback rather than opinion. Frequently the recommendation is trap replacement and insulation rather than anything structural, which is the smaller job.

Common faults we are called to fix

Water hammer on startup, almost always insufficient drainage or a bypassed trap. Equipment heating unevenly, usually a failed trap or air binding rather than a boiler problem. Pressure dropping at the far end of a run under load, typically undersized mains. Condensate flooding back into equipment, often a sizing or backpressure issue on the return line. Persistent leaks at threaded joints on lines that would be better welded.

We attend all of these on plant we did not install, and we will tell you plainly whether a repair or a redesign is the sensible answer.

Working with existing infrastructure

Most work we take on as steam piping contractors Bangalore factories call in involves existing plant. Very few jobs are greenfield. Most involve tying new work into a system built in stages over many years, sometimes with no drawings at all. We survey and mark up what exists before designing anything, because assumptions about buried or clad pipework are expensive when they turn out wrong.

Where documentation is missing entirely, producing an accurate as built drawing set is often the most useful thing we do for a client. It makes every future modification, inspection and maintenance decision faster and safer.

Who we work for

Parle, Althera, Cothas Coffee, Akshaya Patra, Micro Labs, VH Group, Arvind Fashions, Pioneer Laundry and Swastiks. Food and pharmaceutical plants apply the strictest standards for material traceability and hygienic routing, and that discipline carries into all our work.

Maintenance and emergency response

Steam leaks and trap failures do not wait for convenient hours, which is why steam piping contractors Bangalore plants retain should offer a real response commitment. AMC clients get scheduled trap surveys, insulation repair, valve servicing and emergency attendance with a defined response time. We hold common spares locally.

Getting a quotation

We start with a site visit and look at what you actually run, not at a schematic drawn years ago. You get a quotation against real conditions along with an honest view of what needs doing now and what can wait.

If you are comparing steam piping contractors Bangalore wide and want a specification checked before you commit, we are glad to review someone else’s proposal. Call Fabco Engineers or send your requirement through the enquiry form.
